LED platform light

  • Product Model:NLC9210

Application Area

In order to meet the needs of anti-glare lighting in public venues and various production enterprises, NLC9210 LED platform lights have been developed and produced, which are widely used in all kinds of factories, stations, platforms, etc. As channels and platforms for flood lighting.

Features

NLC9210 Product Features

The surface of the high-strength aluminum alloy shell is treated by high-voltage electrostatic coating process, which can work reliably for a long time in various corrosive environments.;

High-strength and high-corrosion-resistant stainless steel exposed fasteners;

Physically tempered prismatic glass translucent cover, impact resistance, high light transmittance, anti-glare design;

Ring-illuminated optical design, wide irradiation range and uniform illuminance;

The use of internationally renowned brand LED light source, high light efficiency, high display index, long life and other characteristics;

The separation design of the light source cavity, the electrical cavity and the wiring cavity effectively controls the temperature rise of each component, extends the service life of the L ED and the drive power supply, and ensures the long-term stable operation of the lamps and lanterns.;

The product is small in size, light in weight, and has good vibration resistance;

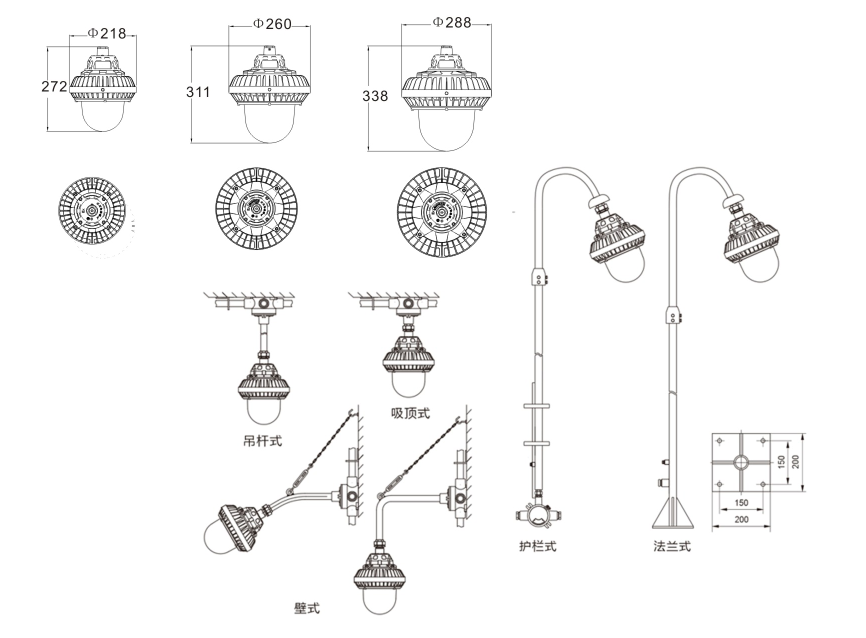

The products have a variety of installation methods such as ceiling type, wall-mounted type, ring type and boom type, guardrail type, flange type, etc., to adapt to the lighting needs of different on-site environments.

Product Parameters

Rated voltage

AC220V/50Hz

Rated power

20W, 30W, 40W, 50W, 60W,

70W, 80W, 90W, 100W, 110W、

120W, 130W, 140W, 150W

Protection level

IP66

Insulation grade

|

Anticorrosive grade

WF2

Introduction device

G3/4 inlet specifications, suitable for medium 7~medium 14mm cable outer diameter

size

Φ218*H272mm ( 20- -40W )

Φ218*H272mm ( 50- -70W )

Φ260*H311mm ( 80- -100W )

Φ288*H338mm ( 110-150W )

weight

3.8kg 4.1kg 6.1kg 7.8kg


Order numberEquipped with light sourceRated power (W)Luminous flux (lm)Average service life (h)
NLC9210-L20WLED202700100000
NLC9210-L30WLED304050100000
NLC9210-L40WLED405400100000
NLC9210-L50WLED506750100000
NLC9210-L60WLED607800100000
NLC9210-L70WLED709450100000
NLC9210-L80WLED8010800100000
NLC9210-L90WLED9012150100000
NLC9210-L100WLED10013500100000
NLC9210-L110WLED11014850100000
NLC9210-L120WLED12016200100000
NLC9210-L130WLED13017550100000
NLC9210-L140WLED14018900100000
NLC9210-L150WLED15020250100000
